SELECTED SOLUTION
Integrated Installation
Positioned while the retaining wall is built, helping teams avoid drilling through a completed reinforced structure.ENGINEERED FENCE SUPPORT
A solid footing,
built into the wall.

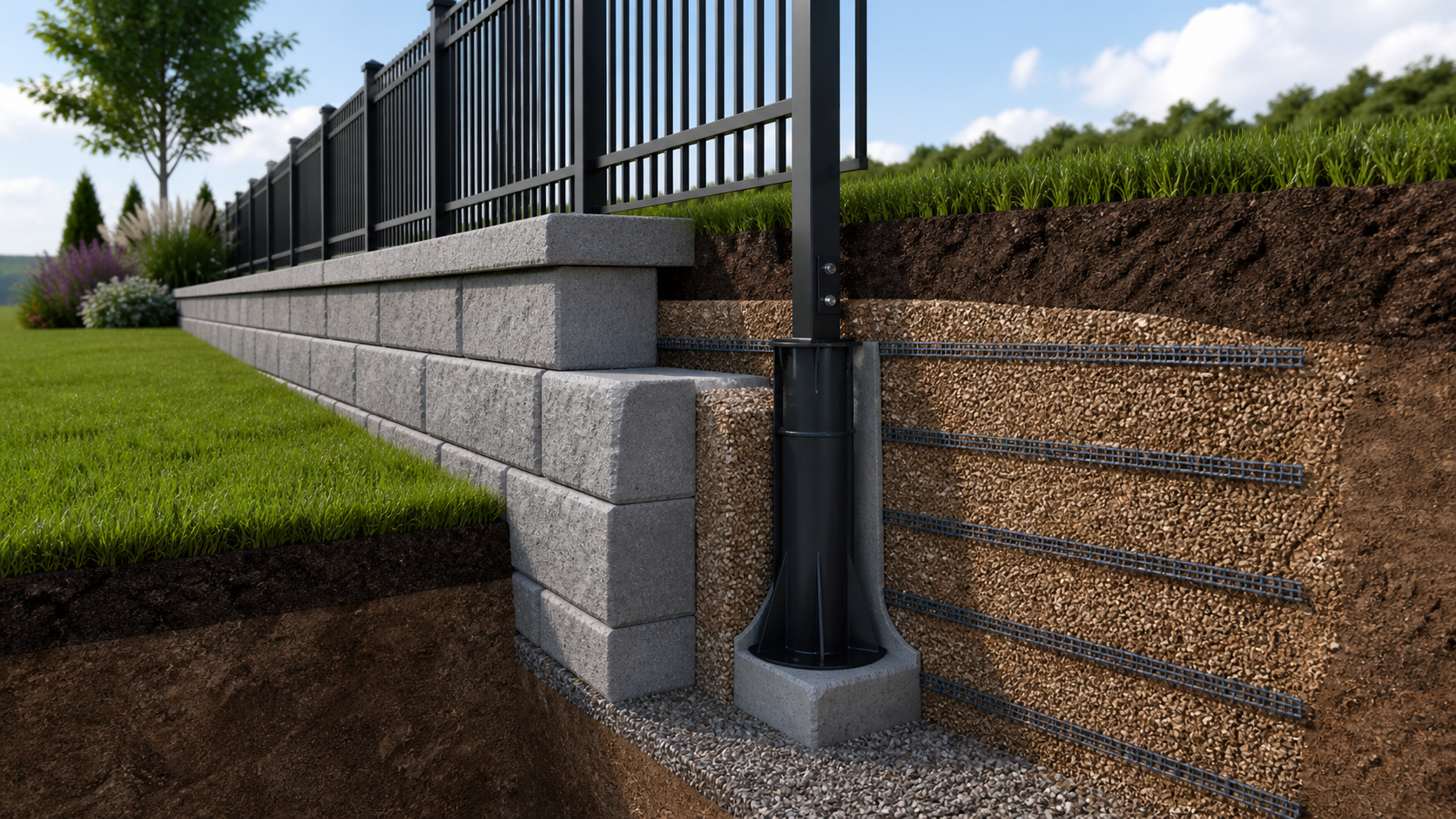

Segmental retaining-wall facing units are not intended to resist the overturning force created by a loaded fence post on their own. Park's anchoring concept places the post support within the reinforced soil zone so the surrounding compacted mass contributes resistance.
Because the unit is installed as the wall is built, teams can coordinate the fence position early and avoid augering through a completed structure. Final dimensions, post spacing, loading and compliance remain subject to the project engineer's approved design.
SIMPLE CONSTRUCTION
Four coordinated steps.
- 01
Position the cantilevered anchor near the designed elevation at the top of the wall.
- 02
Place and compact the specified reinforced fill around the unit in controlled lifts.
- 03
Protect the opening until the fence contractor installs the correctly sized post.
- 04
Secure the post using the engineer-approved infill and complete the fence installation.
PROJECT VALUE
Designed to make installation
more considered.
Space efficient
Integrates support within the reinforced wall zone.
Time efficient
Reduces corrective work after wall completion.
Site practical
Stackable components support handling and sequencing.
PRODUCT SPECIFICATIONS
Technical range
RELATED GEOSYNTHETIC PRODUCTS
Complete the system.
Compatible materials for reinforcement, separation, drainage and long-term ground performance.
